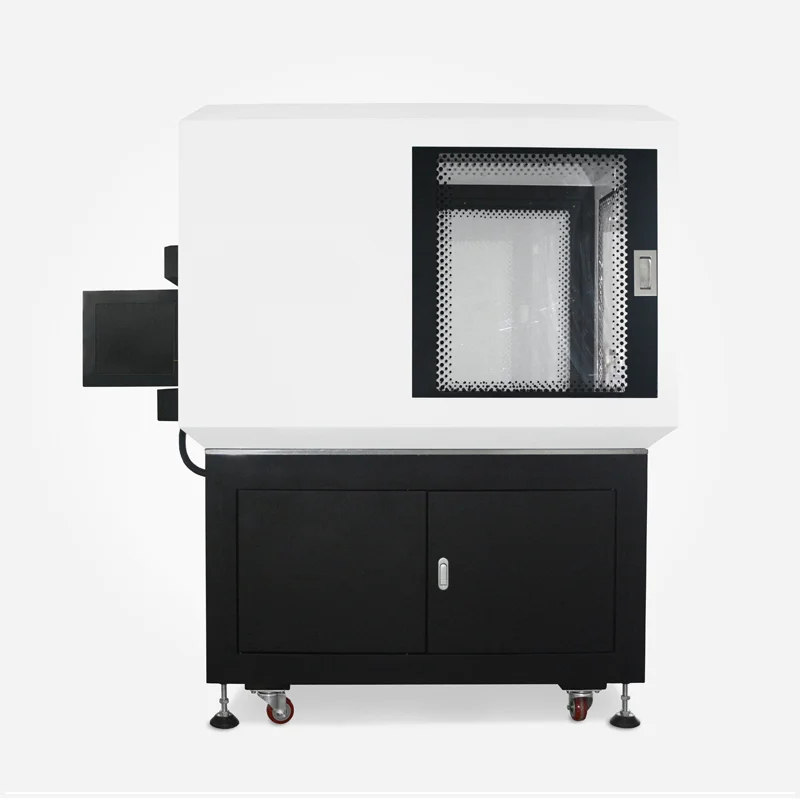

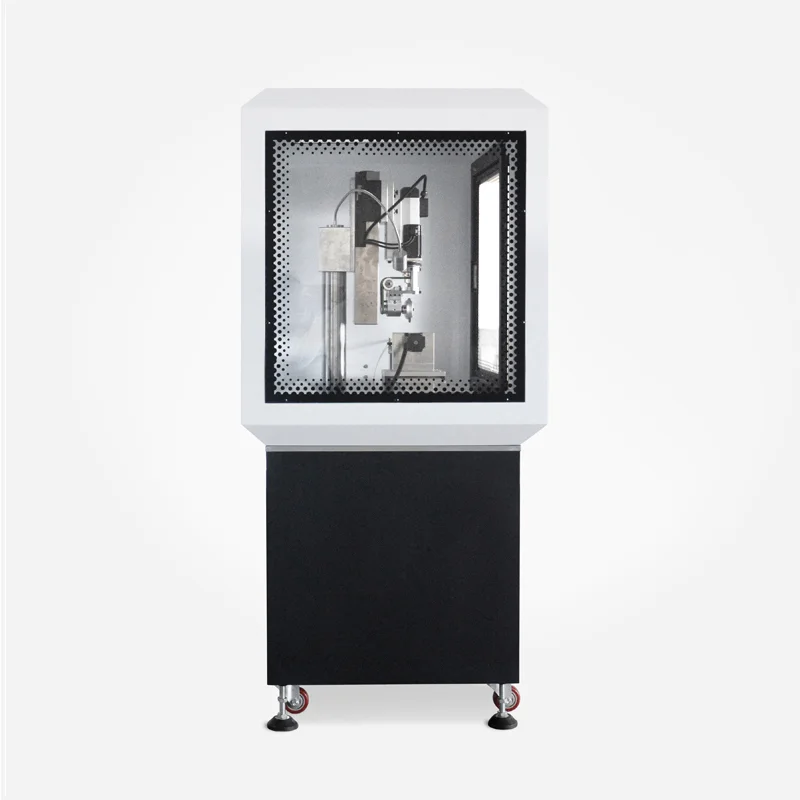

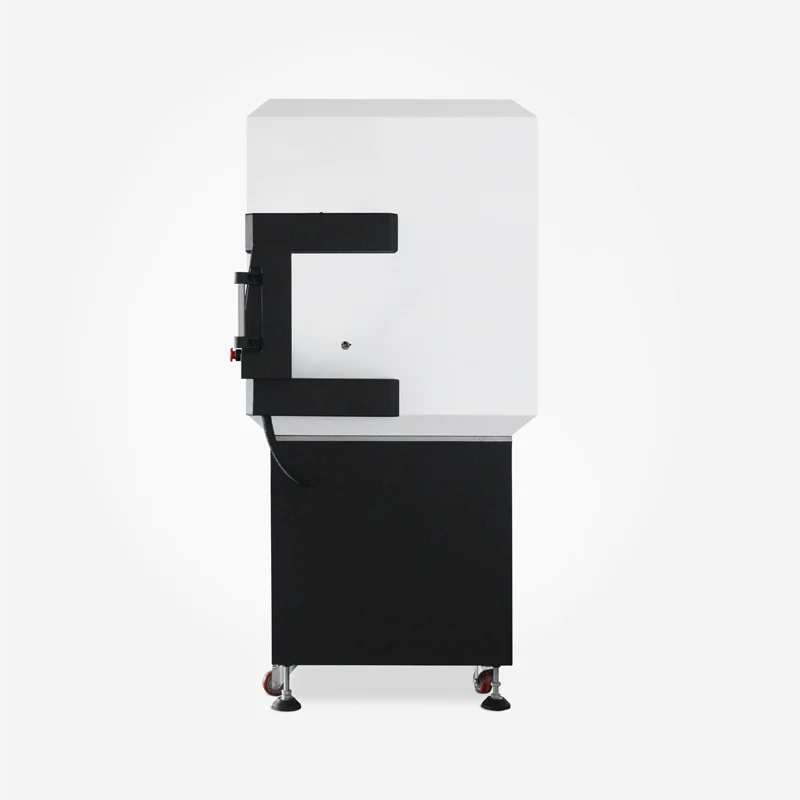

Pipe Diamond Cutting Faceting Machine
Automatic Tube Faceting Machine, Automatic Pipe Faceting Machine. Automatic Tube Diamond Cutting Machine, Automatic Pipe Diamond Cutting Machine
Applicable materials: Gold, silver, copper, K gold
Air Source Pressure: 0.5-0.8Mpa
Voltage: 220V
Power: 1.5KW
Weight: 315Kg
Dimensions: 1290mm×780mm×1660mm
Working Speed: 1-2 knife patterns/S
Processing Specifications: Φ2.0-Φ8.0mm（Tube）
Product Details
Product Details
1. The machine has high practicability and easy fixture replacement.
2. The specifications from Ф2.0 to 8.0mm can be completed on one machine, which greatly improves the production efficiency;

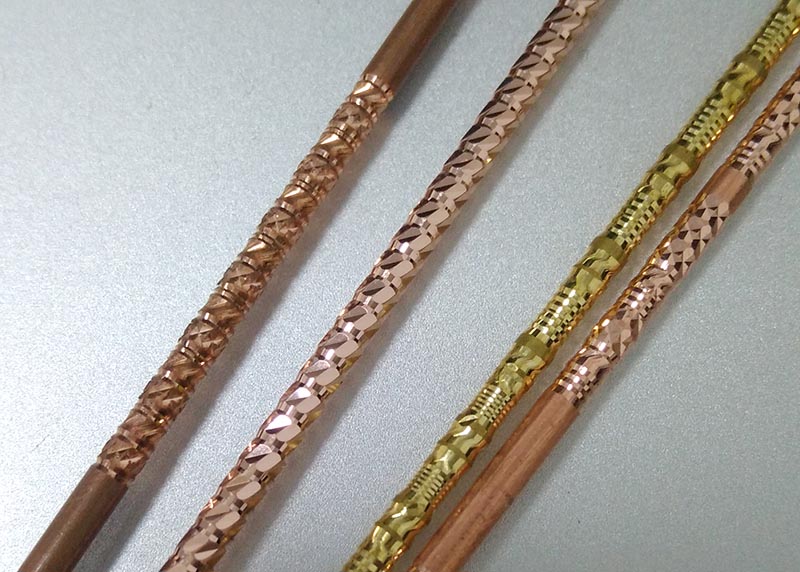

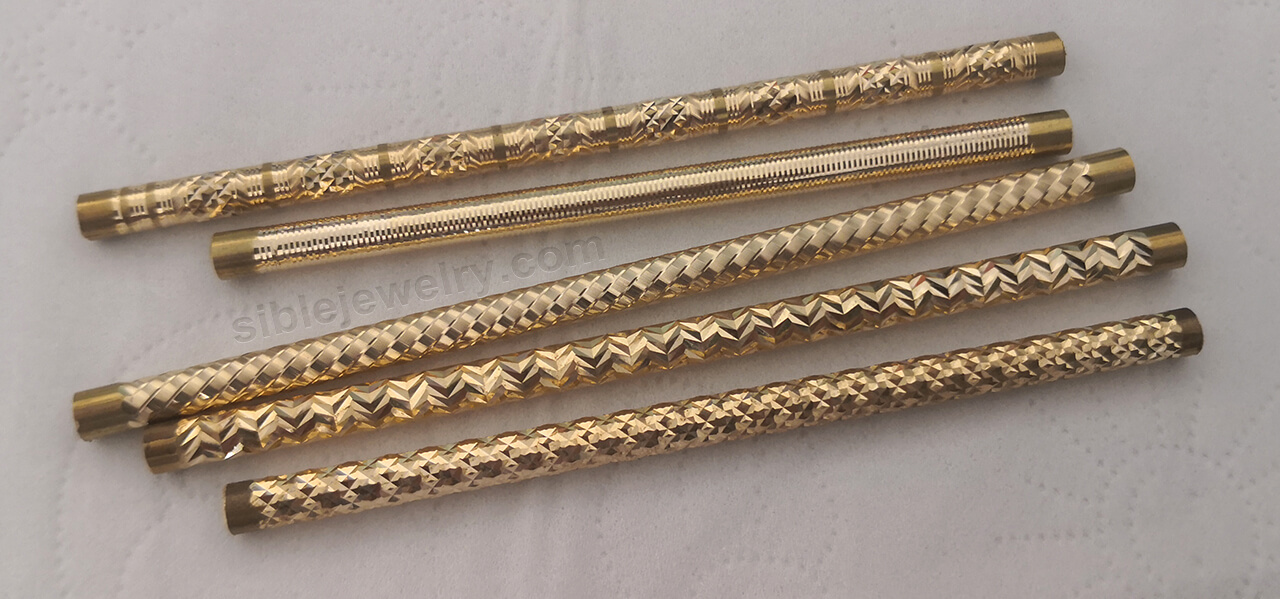

3. Four-axis linkage single-knife (straight knife, R-knife, machete) can be used to car the flower shapes such as baby's breath, pineapple flower, drawing bottom, scraping colored silk, etc.;
4. The touch screen has the function of storing money, and the operation is more convenient;
5. The sliding table, screw rod and body of the machine adopt a fully sealed high-recycling design. When recycling materials, the front and rear doors of the machine body can be opened, which solves the problem of poor recycling of materials.
